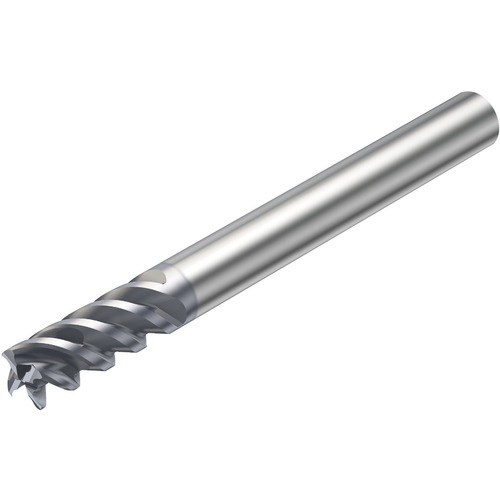

R216.34-20050-AK38H 1620 COROMILL PLURA
Square End Mill; 20 mm Dia. × 38 mm LOC × 20 mm Shank Dia. × 125 mm OAL ; 4 FL ; Carbide
Additional Tariff Surcharge of 8 %
| Cutting Diameter (DC) | 20 mm | End Shape | Square |
| Connection Diameter Machine Side (DCONMS) | 20 mm | Applicable Material | | Steel | Hard Materials | |
| Depth of Cut Maximum (APMX) | 38 mm | Corner Chamfer Width (CHW) | 0.15 mm |
| Overall Length (OAL) | 125 mm | Tool Type | Center Cut |
| Cutting Edge Material | Carbide | Length Group | 1.9D |
| Coating | TIALN | Coolant Supply Property (CSP) | External |
| Flute Count (NOF) | 4 | Decimal Equivalent | 0.7874″ |
| Flute Helix Angle (FHA) | CW|50 Degrees | Series/List # | R216.3x..50-AK..H |
| Shank Type | Round |
Product Features
| Country of Origin | Germany |
Shipping Info
Package Weight
1.202
