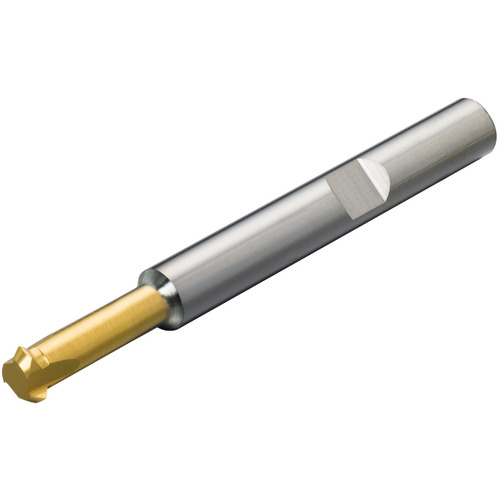

326R08-B2502012-CH 1025 COROMILL 326
SQ End Mill; 7.8 mm Dia. × 25 mm LOC × 8 mm Shank Dia. × 68 mm OAL ; 3 FL ; Carbide ; TIALN+TIN ; Series 326-CH
Additional Tariff Surcharge of 8 %
| Cutting Diameter (DC) | 7.8 mm | End Shape | Concave |
| Connection Diameter Machine Side (DCONMS) | 8 mm | Usable Length (LU) | 25 mm |
| Depth of Cut Maximum (APMX) | 25 mm | Applicable Material | | Stainless Steel | Cast Iron | Super-Alloys / Titanium | Aluminum / Non-Ferrous Materials | |
| Overall Length (OAL) | 68 mm | Length Group | 4.5D |
| Cutting Edge Material | Carbide | Flute Type | Straight |
| Coating | TIALN+TIN | Coolant Supply Property (CSP) | External |
| Flute Count (NOF) | 3 | Decimal Equivalent | 0.3071″ |
| Flute Helix Angle (FHA) | 0 Degrees | Series/List # | 326-CH |
| Shank Type | Weldon |
Product Features
| Country of Origin | United Kingdom |
Shipping Info
Package Weight
0.103
