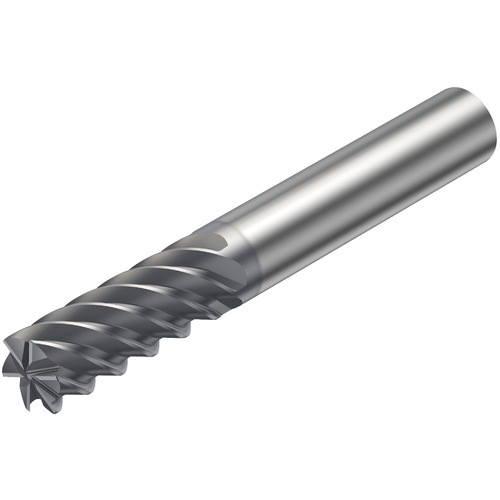

R215.34-04050-AC11H 1610 COROMILL PLURA
Square End Mill; 4 mm Dia. × 11 mm LOC × 6 mm Shank Dia. × 57 mm OAL ; 4 FL ; Carbide
Additional Tariff Surcharge of 8 %
| Cutting Diameter (DC) | 4 mm | End Shape | Square |
| Connection Diameter Machine Side (DCONMS) | 6 mm | Usable Length (LU) | 17 mm |
| Depth of Cut Maximum (APMX) | 11 mm | Applicable Material | | Steel | Hard Materials | |
| Overall Length (OAL) | 57 mm | Corner Chamfer Width (CHW) | 0.1 mm |
| Cutting Edge Material | Carbide | Length Group | 2.8D |
| Coating | TIALN | Coolant Supply Property (CSP) | External |
| Flute Count (NOF) | 4 | Decimal Equivalent | 0.1575″ |
| Flute Helix Angle (FHA) | CW|50 Degrees | Series/List # | R215.3x..50AC..H |
| Shank Type | Round |
Product Features
| Country of Origin | Italy |
Shipping Info
Package Weight
.066
