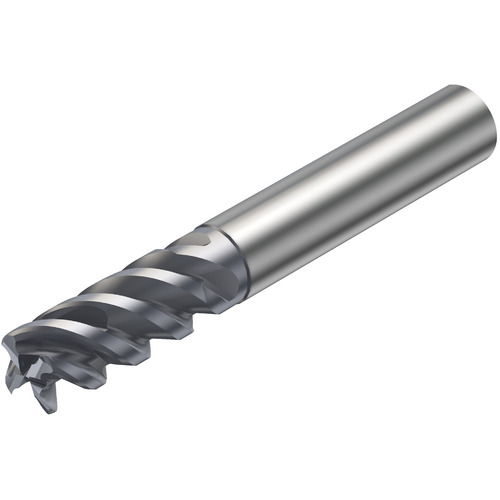

R216.24-20050OCC44P 1620 COROMILL PLURA
Corner Radius End Mill; 20 mm Dia. × 80 mm LOC × 20 mm Shank Dia. × 104 mm OAL ; 4 FL ; Carbide
Additional Tariff Surcharge of 8 %
| Cutting Diameter (DC) | 20 mm | End Shape | Corner Radius |
| Connection Diameter Machine Side (DCONMS) | 20 mm | Applicable Material | | Stainless Steel | Cast Iron | Super-Alloys / Titanium | |
| Depth of Cut Maximum (APMX) | 80 mm | Corner Radius (RE) | 6.35 mm |
| Overall Length (OAL) | 104 mm | Tool Type | Center Cut |
| Cutting Edge Material | Carbide | Length Group | 4D |
| Coating | TIALN | Coolant Supply Property (CSP) | External |
| Flute Count (NOF) | 4 | Decimal Equivalent | 0.7874″ |
| Flute Helix Angle (FHA) | CW|50 Degrees | Series/List # | R216.2x..50CC..P (NECK) |
| Shank Type | Round |
Product Features
| Country of Origin | Germany |
Shipping Info
Package Weight
1.160
