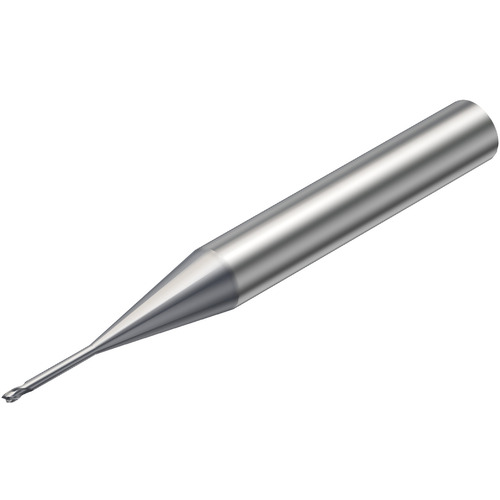

R216.32-00830-AI08G 1620 COROMILL PLURA
Square End Mill; 0.8 mm Dia. × 4 mm LOC × 6 mm Shank Dia. × 57 mm OAL ; 2 FL ; Carbide
Additional Tariff Surcharge of 8 %
| Cutting Diameter (DC) | 0.8 mm | End Shape | Square |
| Connection Diameter Machine Side (DCONMS) | 6 mm | Usable Length (LU) | 4.2 mm |
| Depth of Cut Maximum (APMX) | 4 mm | Applicable Material | | Stainless Steel | Cast Iron | Hard Materials | Super-Alloys / Titanium | Aluminum / Non-Ferrous Materials | |
| Overall Length (OAL) | 57 mm | Corner Radius (RE) | 0 mm |
| Cutting Edge Material | Carbide | Tool Type | Center Cut |
| Coating | TIALN | Length Group | 5D |
| Flute Count (NOF) | 2 | Coolant Supply Property (CSP) | External |
| Flute Helix Angle (FHA) | CW|30 Degrees | Decimal Equivalent | 0.0315″ |
| Shank Type | Round | Series/List # | R216.3x..30-AI..G |
Product Features
| Country of Origin | Germany |
Shipping Info
Package Weight
.071
