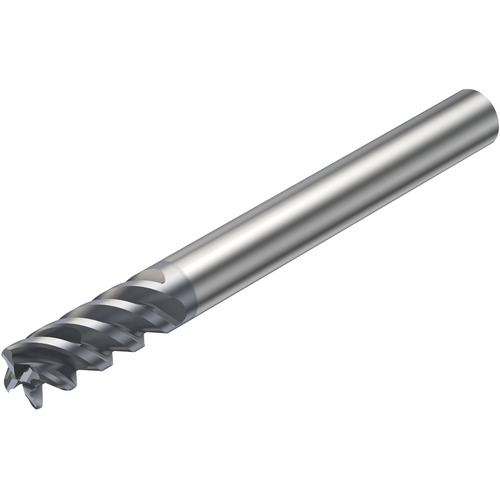

R216.24-20050IAK38P 1620 COROMILL PLURA
Corner Radius End Mill; 20 mm Dia. × 38 mm LOC × 20 mm Shank Dia. × 125 mm OAL ; 4 FL ; Carbide ; AlTiN
Additional Tariff Surcharge of 8 %
| Cutting Diameter (DC) | 20 mm | Shank Type | Round |
| Connection Diameter Machine Side (DCONMS) | 20 mm | End Shape | Corner Radius |
| Depth of Cut Maximum (APMX) | 38 mm | Applicable Material | | Stainless Steel | Cast Iron | Super-Alloys / Titanium | |
| Overall Length (OAL) | 125 mm | Corner Radius (RE) | 4 mm |
| Cutting Edge Material | Carbide | Tool Type | Center Cut |
| Coating | AlTiN | Length Group | 1.9D |
| Flute Count (NOF) | 4 | Coolant Supply Property (CSP) | External |
| Flute Helix Angle (FHA) | CW|50 Degrees | Decimal Equivalent | 0.7874″ |
Product Features
| Country of Origin | Germany |
Shipping Info
Package Weight
1.188
