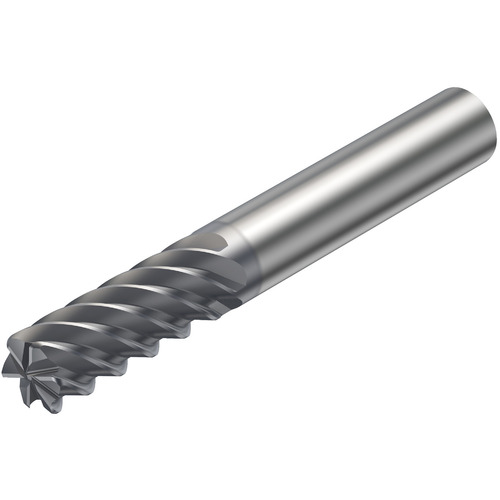

R215.26-10050CAC22H 1610 COROMILL PLURA
Corner Radius End Mill; 10 mm Dia. × 22 mm LOC × 10 mm Shank Dia. × 72 mm OAL ; 6 FL ; Carbide
Additional Tariff Surcharge of 8 %
| Cutting Diameter (DC) | 10 mm | Shank Type | Round |
| Connection Diameter Machine Side (DCONMS) | 10 mm | End Shape | Corner Radius |
| Depth of Cut Maximum (APMX) | 22 mm | Applicable Material | | Steel | Hard Materials | |
| Overall Length (OAL) | 72 mm | Corner Radius (RE) | 1 mm |
| Cutting Edge Material | Carbide | Length Group | 2.2D |
| Coating | TIALN | Coolant Supply Property (CSP) | External |
| Flute Count (NOF) | 6 | Decimal Equivalent | 0.3937″ |
| Flute Helix Angle (FHA) | CW|50 Degrees | Series/List # | R215.2x..AC..H |
Product Features
| Country of Origin | Germany |
Shipping Info
Package Weight
.200
