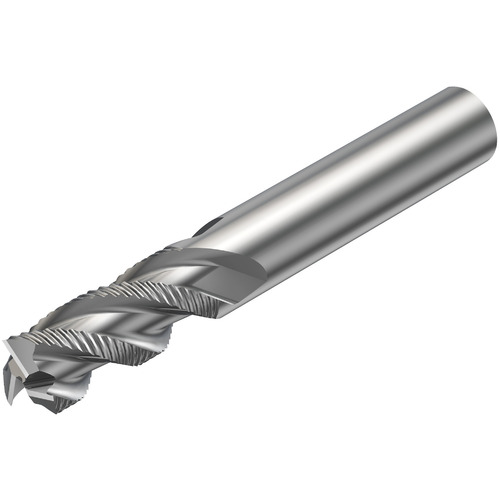

R216.33-10040-AC22U H10F COROMILL PLURA
Square End Mill; 10 mm Dia. × 22 mm LOC × 10 mm Shank Dia. × 72 mm OAL ; 3 FL ; Carbide
Additional Tariff Surcharge of 8 %
| Cutting Diameter (DC) | 10 mm | End Shape | Square |
| Connection Diameter Machine Side (DCONMS) | 10 mm | Applicable Material | | Aluminum / Non-Ferrous Materials | |
| Depth of Cut Maximum (APMX) | 22 mm | Corner Chamfer Width (CHW) | 0.58 mm |
| Overall Length (OAL) | 72 mm | Tool Type | Center Cut |
| Cutting Edge Material | Carbide | Length Group | 2.2D |
| Coating | Uncoated | Coolant Supply Property (CSP) | External |
| Flute Count (NOF) | 3 | Decimal Equivalent | 0.3937″ |
| Flute Helix Angle (FHA) | CW|40 Degrees | Series/List # | R216.3x..40-AC..U |
| Shank Type | Round |
Product Features
| Country of Origin | Germany |
Shipping Info
Package Weight
.176
