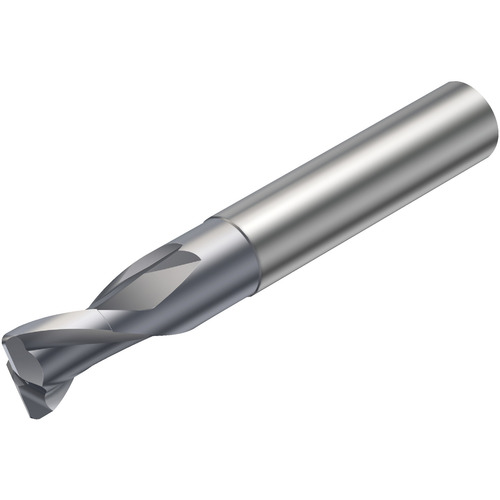

R216.22-02030AAI20G 1610 COROMILL PLURA
Corner Radius End Mill; 2 mm Dia. × 2 mm LOC × 6 mm Shank Dia. × 57 mm OAL ; 2 FL ; Carbide ; AlTiN
Additional Tariff Surcharge of 8 %
| Cutting Diameter (DC) | 2 mm | End Shape | Corner Radius |
| Connection Diameter Machine Side (DCONMS) | 6 mm | Usable Length (LU) | 18.2 mm |
| Depth of Cut Maximum (APMX) | 2 mm | Applicable Material | | Steel | Hard Materials | |
| Overall Length (OAL) | 57 mm | Corner Radius (RE) | 0.2 mm |
| Cutting Edge Material | Carbide | Tool Type | Center Cut |
| Coating | AlTiN | Length Group | 1D |
| Flute Count (NOF) | 2 | Coolant Supply Property (CSP) | External |
| Flute Helix Angle (FHA) | CW|30 Degrees | Decimal Equivalent | 0.0787″ |
| Shank Type | Round |
Product Features
| Country of Origin | Germany |
Shipping Info
Package Weight
.062
