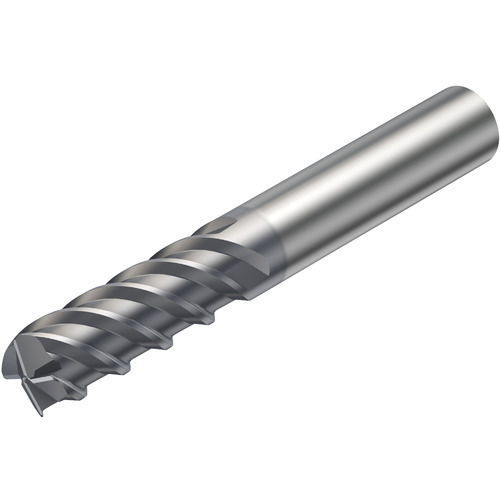

R215.H4-04050BAC02P 1620 COROMILL PLURA
SQ End Mill; 4 mm Dia. × 11 mm LOC × 6 mm Shank Dia. × 57 mm OAL ; | 2 mm | 0.5 mm | RE ; 4 FL ; Carbide ; TIALN ; Series R215.Hx..AC..P
Additional Tariff Surcharge of 8 %
| Cutting Diameter (DC) | 4 mm | End Shape | Corner Radius |
| Connection Diameter Machine Side (DCONMS) | 6 mm | Usable Length (LU) | 11 mm |
| Depth of Cut Maximum (APMX) | 11 mm | Applicable Material | | Stainless Steel | Cast Iron | Super-Alloys / Titanium | |
| Overall Length (OAL) | 57 mm | Corner Radius (RE) | | 2 mm | 0.5 mm | |
| Cutting Edge Material | Carbide | Length Group | 2.8D |
| Coating | TIALN | Coolant Supply Property (CSP) | External |
| Flute Count (NOF) | 4 | Decimal Equivalent | 0.1575″ |
| Flute Helix Angle (FHA) | CW|50 Degrees | Series/List # | R215.Hx..AC..P |
| Shank Type | Round |
Product Features
| Country of Origin | Germany |
Shipping Info
Package Weight
0.066
