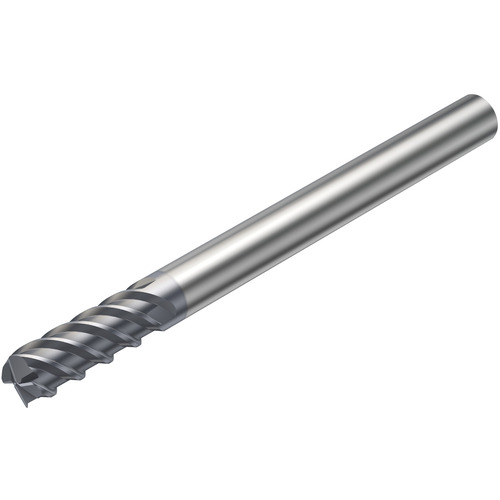

R215.H4-12050DAK08P 1620 COROMILL PLURA
Corner Radius End Mill; 12 mm Dia. × 12 mm LOC × 12 mm Shank Dia. × 93 mm OAL ; 4 FL ; Carbide
Additional Tariff Surcharge of 8 %
| Cutting Diameter (DC) | 12 mm | Shank Type | Round |
| Connection Diameter Machine Side (DCONMS) | 12 mm | End Shape | Corner Radius |
| Depth of Cut Maximum (APMX) | 12 mm | Applicable Material | | Stainless Steel | Cast Iron | Super-Alloys / Titanium | |
| Overall Length (OAL) | 93 mm | Corner Radius (RE) | | 1.5 mm | 6 mm | |
| Cutting Edge Material | Carbide | Length Group | 1.3D |
| Coating | TIALN | Coolant Supply Property (CSP) | External |
| Flute Count (NOF) | 4 | Decimal Equivalent | 0.4724″ |
| Flute Helix Angle (FHA) | CW|50 Degrees | Series/List # | R215.Hx..AK..P |
Product Features
| Country of Origin | Germany |
Shipping Info
Package Weight
.353
