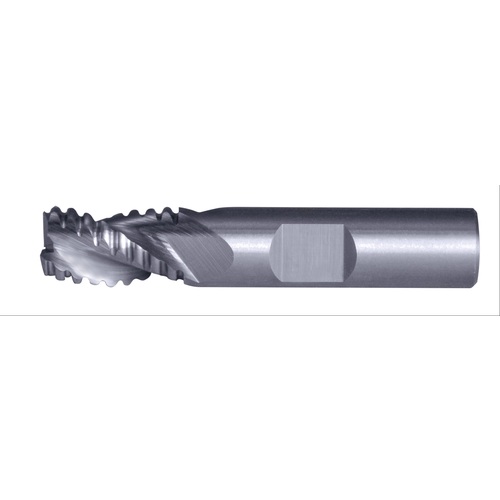

5/8″ × 5/8″ × 2-1/4″ × 5″ RHS / RHC Solid Carbide 3-Flute Square End High-Performance Roughing End Mill - Bright
Square End Mill; 5/8″ Dia. × 2-1/4″ LOC × 5/8″ Shank Dia. × 5″ OAL ; 3 FL ; Carbide ; Uncoated ; Series CEM-RA
| Cutting Diameter (DC) | 5/8″ | Application | Roughing |
| Connection Diameter Machine Side (DCONMS) | 5/8″ | Tool Type | End Mill |
| Depth of Cut Maximum (APMX) | 2-1/4″ | Length Group | Long |
| Overall Length (OAL) | 5″ | Flute Type | Spiral | Extra Coarse |
| Cutting Edge Material | Carbide | Decimal Equivalent | 0.625″ |
| Coating | Uncoated | Measurement Type | Inch |
| Flute Count (NOF) | 3 | Series/List # | CEM-RA |
| Shank Type | Weldon | Cutting Direction (HAND) | Right Hand |
| End Shape | Square | Single / Double End | Single End |
| Applicable Material | | Aluminum / Non-Ferrous Materials | |
Product Features
| Country of Origin | USA |
Shipping Info
Package Weight
.591
