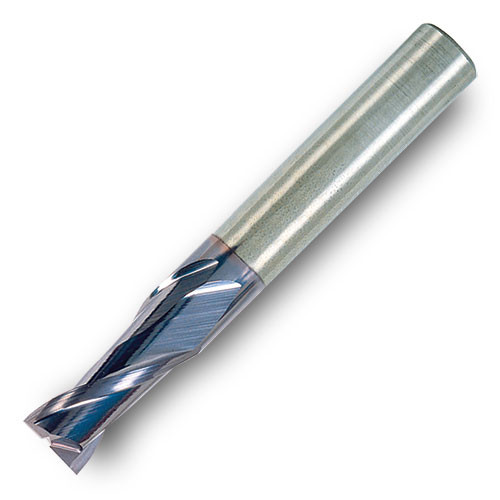

45C-4310R9RB00 IN2005
| Cutting Diameter (DC) | 0.438″ | Applicable Material | | Steel | Stainless Steel | Cast Iron | Hard Materials | Aluminum / Non-Ferrous Materials | Super-Alloys / Titanium | |
| Connection Diameter Machine Side (DCONMS) | 0.438″ | Application | | Helical Interpolation | Rampdown | Shouldering | Slotting | |
| Depth of Cut Maximum (APMX) | 1″ | Corner Chamfer Width (CHW) | 0.01″ |
| Overall Length (OAL) | 2-3/4″ | Grade | IN2005 |
| Cutting Edge Material | Carbide | Tool Type | Center Cut |
| Coating | TiAlN | Body Material | Carbide |
| Flute Count (NOF) | 2 | Decimal Equivalent | 0.438″ |
| Flute Helix Angle (FHA) | 30 Degrees | Measurement Type | Inch |
| End Shape | Chamfer | Tool Cutting Edge Angle (KAPR) | 90 Degrees |
Product Features
| Family Description | Center-cutting with corner chamfer Medium Length General purpose applications | Country of Origin | Usa |
Shipping Info
Package Weight
2.028
