47D-6210S6RC35 IN2005

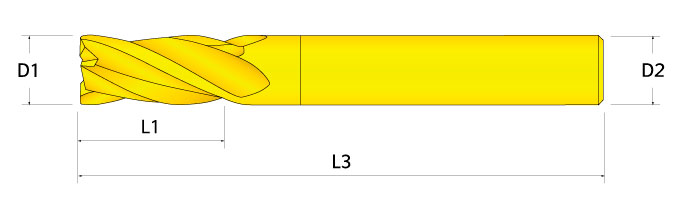

SQ End Mill; 5/8″ Dia. × 1'' LOC × 5/8″ Shank Dia. × 3-1/2″ OAL ; 4 FL ; Carbide ; AlTiN
| Cutting Diameter (DC) | 5/8″ | Usable Length (LU) | 0'' |
| Connection Diameter Machine Side (DCONMS) | 5/8″ | Corner Radius (RE) | 0'' |
| Depth of Cut Maximum (APMX) | 1'' | Corner Chamfer Width (CHW) | 0'' |
| Overall Length (OAL) | 3-1/2″ | Ramping Angle Maximum (RMPX) | 0 Degrees |
| Cutting Edge Material | Carbide | Grade | IN2005 |
| Coating | AlTiN | Tool Type | Center Cut |
| Flute Count (NOF) | 4 | Decimal Equivalent | 0.035″ |
| Flute Helix Angle (FHA) | 38 Degrees | Measurement Type | Inch |
Product Features
| Family Description | Diameters: 0.125″–0.750″ Grade: IN2005 | Country of Origin | Israel |
Shipping Info
Package Weight
0.3
