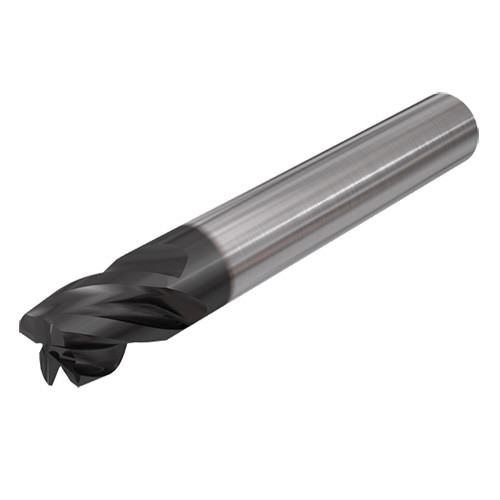

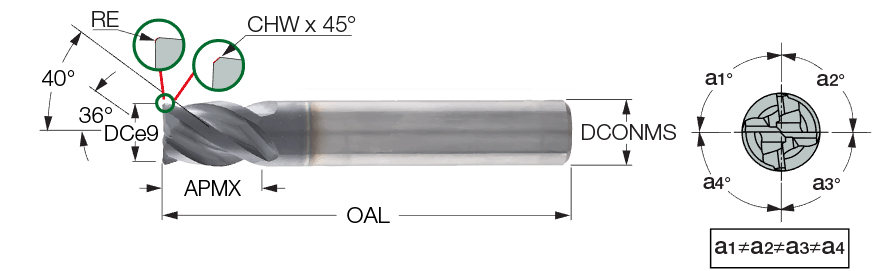

EC-H4S 12-12C12CFR.6E73 IC608
SQ End Mill; 12 mm Dia. × 12 mm LOC × 12 mm Shank Dia. × 73 mm OAL ; 0.6 mm RE ; 4 FL ; 12 mm LBS ; Carbide ; AlTiCrSiN
| Cutting Diameter (DC) | 12 mm | Corner Radius (RE) | 0.6 mm |
| Connection Diameter Machine Side (DCONMS) | 12 mm | Ramping Angle Maximum (RMPX) | 5 Degrees |
| Depth of Cut Maximum (APMX) | 12 mm | Grade | IC608 |
| Overall Length (OAL) | 73 mm | Tool Type | Solid carbide center cutting endmills 90° |
| Cutting Edge Material | Carbide | Maximum Feed per Tooth (fz(max)) | 0.1 mm/tooth |
| Coating | AlTiCrSiN | Minimum Feed per Tooth (fz(min)) | 0.04 mm/tooth |
| Flute Count (NOF) | 4 | Coolant Supply Property (CSP) | External |
| Flute Helix Angle (FHA) | 38 Degrees | Body Material | Carbide |
| Shank Type | Round | Measurement Type | Metric |
| End Shape | Corner Radius | Connection Code Machine Side (CCMS) | Cylindrical |
| Usable Length (LU) | 12 mm | Cutting Diameter Tolerance | e8 |
| Applicable Material | | Steel | Stainless Steel | Cast Iron | Hard Materials | Super-Alloys / Titanium | | Shank Diameter Tolerance (TCDMM) | h6 |
| Application | | Drill Mill | Helical Interpolation | Plunging & Recessing | Rampdown | Shouldering | Slotting | |
Product Features
| Family Description | Short 4 flute endmills with different helix (36° & 40°) and variable pitch for chatter damping, for very high material removal rates in roughing and finishing operations. Full slot milling up to 1XD. | Country of Origin | Israel |
Shipping Info
Package Weight
0.253
