TPC1670R01 IN2505

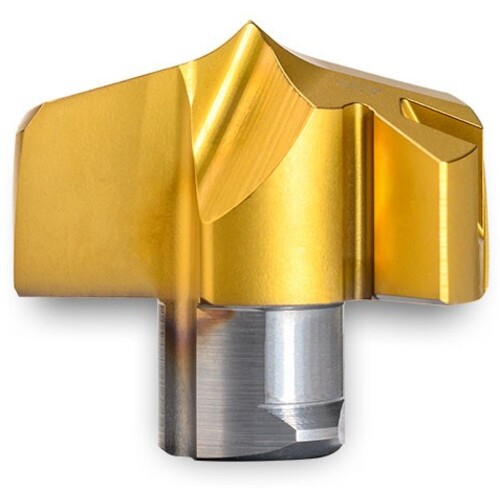

Drill Head; 13.5 mm Dia. × 7.6 mm Thickness ; 140 Degrees ; IN2505 ; Carbide ; TiAlN
| Cutting Diameter (DC) | 13.5 mm | Cutting Edge Material | Carbide |
| Applicable Material | | Steel | Stainless Steel | Cast Iron | Hard Materials | Hi Temp Alloys | | Measurement Type | Metric |
| Application | | Drilling | | Insert Thickness (S) | 7.6 mm |
| Grade | IN2505 | Point Length (PL) | 2.04 mm |
| Tool Type | Drilling Heads | Point Angle (SIG) | 140 Degrees |
| Insert Seat Size Code (SSC) | 13.0 | Coating | TiAlN |
| Functional Length (LF) | 5.56 mm | Body Material | Carbide |
Product Features
| Country of Origin | S.Korea |
Shipping Info
Package Weight
0.05
