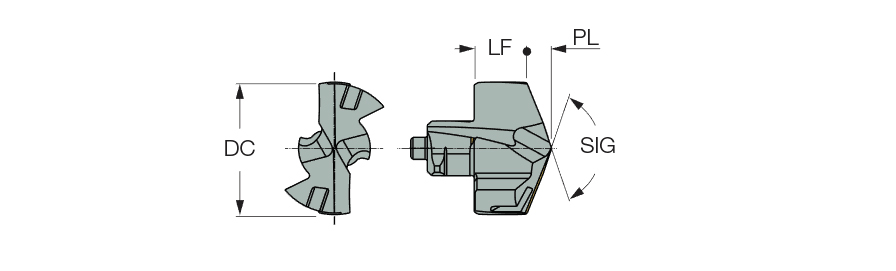

| Cutting Diameter (DC) | 14.1 mm | Cutting Edge Material | Carbide |
| Applicable Material | | Aluminum / Non-Ferrous Materials | | Measurement Type | Metric |
| Application | | Chamfering | Drilling | | Insert Thickness (S) | 8.15 mm |
| Grade | IC08 | Point Length (PL) | 2.14 mm |
| Tool Type | Drilling Heads | Point Angle (SIG) | 140 Degrees |
| Insert Seat Size Code (SSC) | 14.0 | Coating | Uncoated |
| Functional Length (LF) | 6.01 mm | Body Material | Carbide |
Product Features
| Family Description | Exchangeable drilling heads for DCN drills, for machining ISO N materials. The drill head is designed with a sharp cutting edge and polished rake face, available in increments of 0.1 mm. | Country of Origin | Israel |
Shipping Info
Package Weight
0.01
