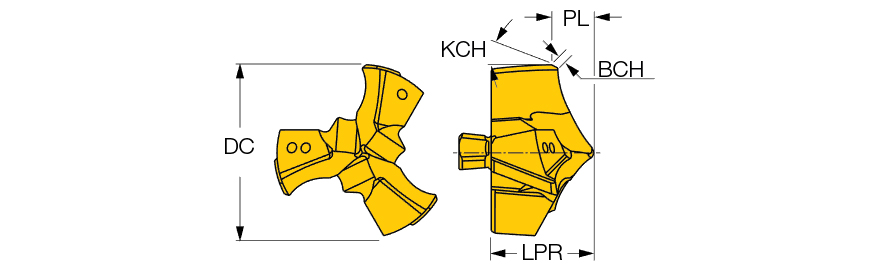

| Cutting Diameter (DC) | 0.744″ | Cutting Edge Material | Carbide |
| Applicable Material | | Steel | Stainless Steel | Cast Iron | Hard Materials | Super-Alloys / Titanium | | Measurement Type | Inch |
| Application | | Drilling | | Point Length (PL) | 0.15354″ |
| Grade | IC908 | Point Angle (SIG) | 135 Degrees |
| Protruding Length (LPR) | 0.408″ | Coating | TiAlN |
| Insert Seat Size Code (SSC) | 18 | Chamfer Angle | 15 Degrees |
| Functional Length (LF) | 0.254″ | Body Material | Carbide |
Product Features
| Family Description | Exchangeable 3 flute drilling heads for machining carbon and alloy steel (ISO P) and cast iron (ISO K). The drill head is designed with a honed cutting edge, available in increments of .004″. | Country of Origin | Israel |
Shipping Info
Package Weight
0.045
