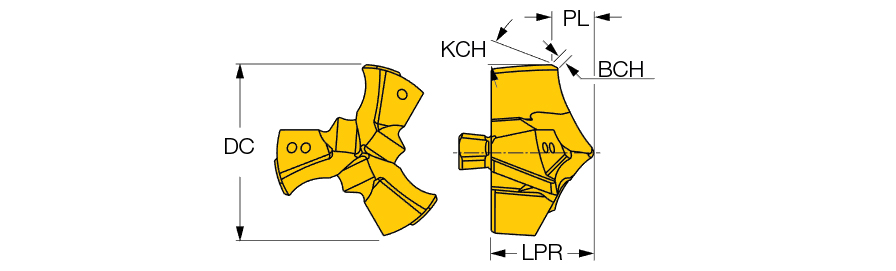

| Cutting Diameter (DC) | 23.9 mm | Cutting Edge Material | Carbide |
| Applicable Material | | Steel | Stainless Steel | Cast Iron | Hard Materials | Super-Alloys / Titanium | | Measurement Type | Metric |
| Application | | Drilling | | Point Length (PL) | 4.91 mm |
| Grade | IC908 | Point Angle (SIG) | 135 Degrees |
| Protruding Length (LPR) | 13 mm | Coating | TiAlN |
| Insert Seat Size Code (SSC) | 23 | Chamfer Angle | 15 Degrees |
| Functional Length (LF) | 8.09 mm | Body Material | Carbide |
Product Features
| Family Description | Exchangeable 3 flute drilling heads for machining carbon and alloy steel (ISO P) and cast iron (ISO K). The drill head is designed with a honed cutting edge, available in increments of 0.1 mm. | Country of Origin | Israel |
Shipping Info
Package Weight
0.01
