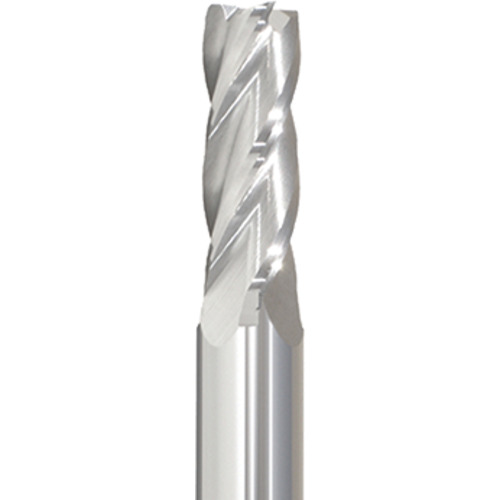

8mm-4FL-SE-XL (44x100) AlTiN
SQ End Mill; 8 mm Dia. × 44 mm LOC × 8 mm Shank Dia. × 100 mm OAL ; 4 FL ; Solid Tungsten Carbide ; AlTiN ; Series 218
| Cutting Diameter (DC) | 8 mm | Applicable Material | | Stainless Steel | Cast Iron | Hard Materials | Super-Alloys / Titanium | |
| Connection Diameter Machine Side (DCONMS) | 8 mm | Application | Slotting | Profiling | Ramping |
| Depth of Cut Maximum (APMX) | 44 mm | Grade | C-2 Sub-Micron |
| Overall Length (OAL) | 100 mm | Decimal Equivalent | 0.315″ |
| Cutting Edge Material | Carbide | Series/List # | 218 |
| Coating | AlTiN | Cutting Direction (HAND) | Right Hand |
| Flute Count (NOF) | 4 | Single / Double End | Single End |
| Flute Helix Angle (FHA) | 30 Degrees | Center Cutting | Yes |
Product Features
| Country of Origin | USA |
Shipping Info
Package Weight
.140
