1-4FL-SE-REG w/.125R AlTiN

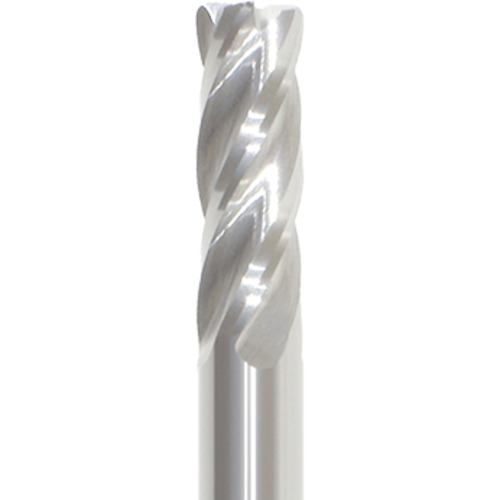

Corner Radius End Mill; 1″ Dia. × 1-1/2″ LOC × 1″ Shank Dia. × 4″ OAL ; 4 FL ; Carbide ; AlTiN ; Series 206
| Cutting Diameter (DC) | 1″ | Application | Profiling | Ramping | Profile Cutting | Radiusing | Radius Slotting |
| Connection Diameter Machine Side (DCONMS) | 1″ | Corner Radius (RE) | 1/8″ |
| Depth of Cut Maximum (APMX) | 1-1/2″ | Grade | C-2 Sub-Micron |
| Overall Length (OAL) | 4″ | Length Group | Regular |
| Cutting Edge Material | Carbide | Decimal Equivalent | 1″ |
| Coating | AlTiN | Series/List # | 206 |
| Flute Count (NOF) | 4 | Cutting Direction (HAND) | Right Hand |
| Flute Helix Angle (FHA) | 30 Degrees | Single / Double End | Single End |
| End Shape | Corner Radius | Center Cutting | Yes |
| Applicable Material | | Stainless Steel | Cast Iron | Hard Materials | Super-Alloys / Titanium | |
Product Features
| Country of Origin | USA |
Shipping Info
Package Weight
1.490
