5/8-2FL-SE-REG AlTiN

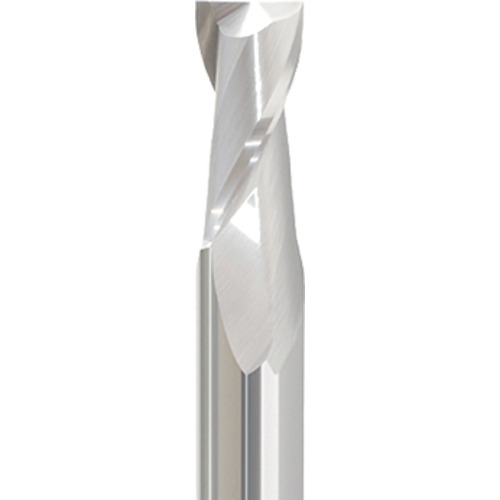

Square End Mill; 5/8″ Dia. × 1-1/4″ LOC × 5/8″ Shank Dia. × 3-1/2″ OAL ; 2 FL ; Carbide ; AlTiN ; Series 204
| Cutting Diameter (DC) | 5/8″ | Applicable Material | | Stainless Steel | Cast Iron | |
| Connection Diameter Machine Side (DCONMS) | 5/8″ | Application | Slotting | Profiling | Plunging |
| Depth of Cut Maximum (APMX) | 1-1/4″ | Grade | C-2 Sub-Micron |
| Overall Length (OAL) | 3-1/2″ | Length Group | Regular |
| Cutting Edge Material | Carbide | Decimal Equivalent | 0.625″ |
| Coating | AlTiN | Series/List # | 204 |
| Flute Count (NOF) | 2 | Cutting Direction (HAND) | Right Hand |
| Flute Helix Angle (FHA) | 30 Degrees | Single / Double End | Single End |
| End Shape | Square | Center Cutting | Yes |
Product Features
| Country of Origin | USA |
Shipping Info
Package Weight
.480
