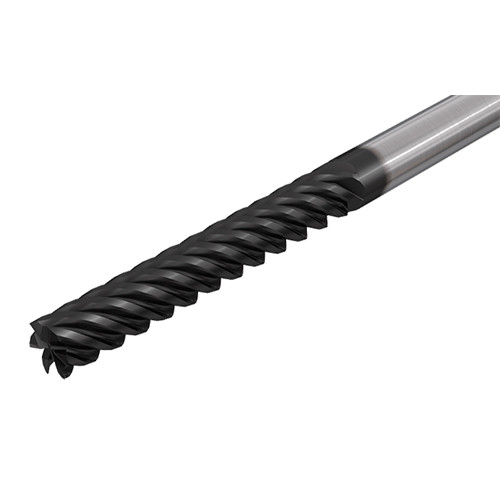

ECXI-B-6 313-1.88-C313 IC900
SQ End Mill; 0.313″ Dia. × 1.88″ LOC × 0.313″ Shank Dia. × 4″ OAL ; 0″ RE ; 6 FL ; 1.88″ LBS ; Carbide ; AlTiN

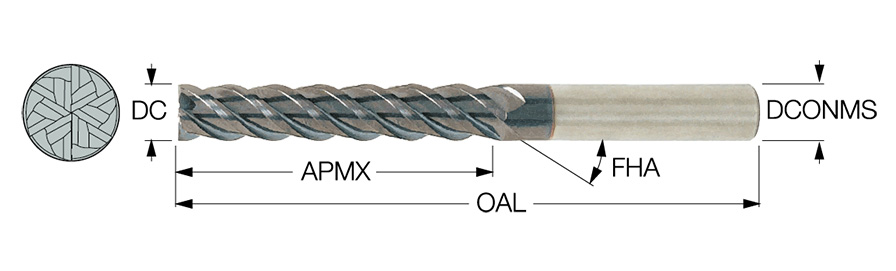

| Cutting Diameter (DC) | 0.313″ | Corner Radius (RE) | 0″ |
| Connection Diameter Machine Side (DCONMS) | 0.313″ | Ramping Angle Maximum (RMPX) | 3 Degrees |
| Depth of Cut Maximum (APMX) | 1.88″ | Grade | IC900 |
| Overall Length (OAL) | 4″ | Tool Type | Solid carbide non center cutting endmills 90° |
| Cutting Edge Material | Carbide | Maximum Feed per Tooth (fz(max)) | 0.004 ″/tooth |
| Coating | AlTiN | Minimum Feed per Tooth (fz(min)) | 0.001 ″/tooth |
| Flute Count (NOF) | 6 | Coolant Supply Property (CSP) | External |
| Flute Helix Angle (FHA) | 45 Degrees | Body Material | Carbide |
| Shank Type | Round | Decimal Equivalent | 0.313″ |
| End Shape | Corner Radius | Measurement Type | Inch |
| Usable Length (LU) | 1.88″ | Connection Code Machine Side (CCMS) | Cylindrical |
| Applicable Material | | Steel | Stainless Steel | Cast Iron | Hard Materials | Super-Alloys / Titanium | | Cutting Diameter Tolerance | e8 |
| Application | | Shouldering | | Shank Diameter Tolerance (TCDMM) | h6 |
Product Features
| Family Description | 6 flute 45° helix, center cutting extra long solid carbide endmills. | Country of Origin | Israel |
| Remarks | Smooth cutting in extra long depth. |
Shipping Info
Package Weight
0.152
