ECAI-F-2 437-875-C437 IC08

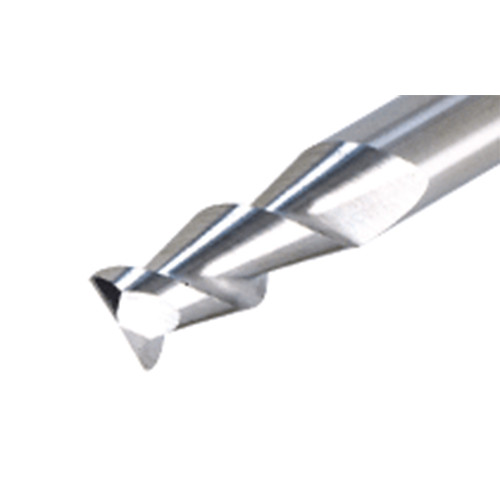

SQ End Mill; 0.437″ Dia. × 7/8″ LOC × 0.437″ Shank Dia. × 2-3/4″ OAL ; 0″ RE ; 2 FL ; 7/8″ LBS ; Carbide ; Uncoated

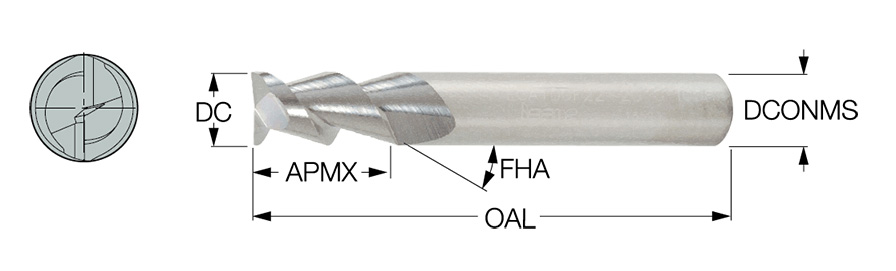

| Cutting Diameter (DC) | 0.437″ | Corner Radius (RE) | 0″ |
| Connection Diameter Machine Side (DCONMS) | 0.437″ | Ramping Angle Maximum (RMPX) | 5 Degrees |
| Depth of Cut Maximum (APMX) | 7/8″ | Grade | IC08 |
| Overall Length (OAL) | 2-3/4″ | Tool Type | Solid carbide for Aluminum |
| Cutting Edge Material | Carbide | Maximum Feed per Tooth (fz(max)) | 0.004 ″/tooth |
| Coating | Uncoated | Minimum Feed per Tooth (fz(min)) | 0.002 ″/tooth |
| Flute Count (NOF) | 2 | Coolant Supply Property (CSP) | External |
| Flute Helix Angle (FHA) | 55 Degrees | Body Material | Carbide |
| Shank Type | Round | Decimal Equivalent | 0.437″ |
| End Shape | Corner Radius | Measurement Type | Inch |
| Usable Length (LU) | 7/8″ | Connection Code Machine Side (CCMS) | Cylindrical |
| Applicable Material | | Aluminum / Non-Ferrous Materials | | Cutting Diameter Tolerance | h6 |
| Application | | Drill Mill | Helical Interpolation | Plunging & Recessing | Rampdown | Shouldering | Slotting | | Shank Diameter Tolerance (TCDMM) | h6 |
Product Features
| Family Description | 2 flute, 55° helix, medium length solid carbide endmills. Used for machining aluminum. | Country of Origin | Israel |
Shipping Info
Package Weight
0.219
