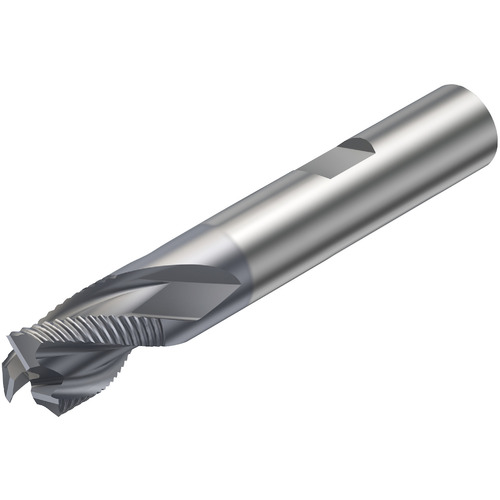

R216.33-10030-BS11K 1640 COROMILL PLURA
Corner Radius End Mill; 10 mm Dia. × 11 mm LOC × 10 mm Shank Dia. × 66 mm OAL ; 3 FL ; Carbide ; AlTiN
Additional Tariff Surcharge of 8 %
| Cutting Diameter (DC) | 10 mm | Shank Type | Weldon |
| Connection Diameter Machine Side (DCONMS) | 10 mm | End Shape | Corner Radius |
| Depth of Cut Maximum (APMX) | 11 mm | Applicable Material | | Stainless Steel | Cast Iron | |
| Overall Length (OAL) | 66 mm | Corner Radius (RE) | 0.4 mm |
| Cutting Edge Material | Carbide | Tool Type | Center Cut |
| Coating | AlTiN | Length Group | 1.1D |
| Flute Count (NOF) | 3 | Coolant Supply Property (CSP) | External |
| Flute Helix Angle (FHA) | CW|30 Degrees | Decimal Equivalent | 0.3937″ |
Product Features
| Country of Origin | Germany |
Shipping Info
Package Weight
.168
