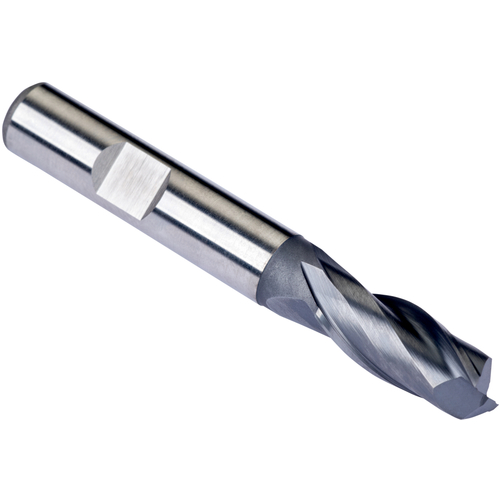

9.00 MM Dormer HSS-E-PM TiCN DIN 1835 B Shank Slot Drill N DIN 844 K E-code # C1399.0
SQ End Mill; 9 mm Dia. × 19 mm LOC × 10 mm Shank Dia. × 69 mm OAL ; 2 FL ; HSS-E-PM ; TiCN ; Series C139
Additional Tariff Surcharge of 8 %
| Cutting Diameter (DC) | 9 mm | Applicable Material | | Steel | Cast Iron | Hard Materials | Super-Alloys / Titanium | Aluminum / Non-Ferrous Materials | |
| Connection Diameter Machine Side (DCONMS) | 10 mm | Application | Shank Cutter Slotting |
| Depth of Cut Maximum (APMX) | 19 mm | Head Length (LH) | 19 mm |
| Overall Length (OAL) | 69 mm | Length Group | Short|Stub |
| Cutting Edge Material | HSS-E-PM | Shank Standard | DIN 1835 B |
| Coating | TiCN | Body Material | HSS-E-PM Material |
| Flute Count (NOF) | 2 | Decimal Equivalent | 0.3543″ |
| Flute Helix Angle (FHA) | 30 Degrees | Series/List # | C139 |
| Shank Type | Weldon |
Product Features
| Family Description | E-code # C1399.0 | Country of Origin | Poland |
Shipping Info
Package Weight
1.4
