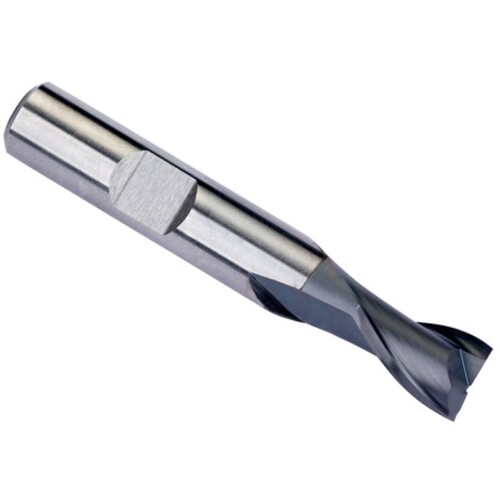

13.00 MM Dormer HSS-E-PM TiCN DIN 1835 B Shank Slot Drill N DIN 327 E-code # C12613.0
SQ End Mill; 13 mm Dia. × 27.5 mm LOC × 12 mm Shank Dia. × 73 mm OAL ; 2 FL ; HSSCo-PM ; TiCN ; Series C333
Additional Tariff Surcharge of 8 %
| Cutting Diameter (DC) | 13 mm | Applicable Material | | Steel | Cast Iron | Hard Materials | Super-Alloys / Titanium | Aluminum / Non-Ferrous Materials | |
| Connection Diameter Machine Side (DCONMS) | 12 mm | Application | Shank Cutter Slotting |
| Depth of Cut Maximum (APMX) | 27.5 mm | Head Length (LH) | 16 mm |
| Overall Length (OAL) | 73 mm | Neck Length (LN) | 27.5 mm |
| Cutting Edge Material | HSSCo-PM | Length Group | Extra Short |
| Coating | TiCN | Shank Standard | DIN 1835 B |
| Flute Count (NOF) | 2 | Body Material | HSS-E-PM Material |
| Flute Helix Angle (FHA) | 30 Degrees | Decimal Equivalent | 0.5118″ |
| Shank Type | Weldon | Series/List # | C333 |
Product Features
| Family Description | E-code # C12613.0 | Country of Origin | Czech Rep. |
Shipping Info
Package Weight
2.135
