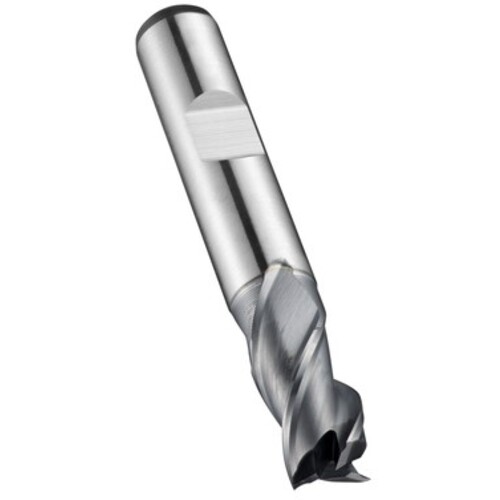

2.00 MM Dormer HSS-E-PM ALCRONA DIN 1835 B Shank Slot Drill N DIN 327 E-code # C3672.0
SQ End Mill; 2 mm Dia. × 4 mm LOC × 6 mm Shank Dia. × 48 mm OAL ; 3 FL ; HSS-E-PM ; ALCRONA ; Series C367
Additional Tariff Surcharge of 8 %
| Cutting Diameter (DC) | 2 mm | Applicable Material | | Steel | Super-Alloys / Titanium | Aluminum / Non-Ferrous Materials | |
| Connection Diameter Machine Side (DCONMS) | 6 mm | Application | Shank Cutter Slotting |
| Depth of Cut Maximum (APMX) | 4 mm | Head Length (LH) | 4 mm |
| Overall Length (OAL) | 48 mm | Length Group | Extra Short |
| Cutting Edge Material | HSS-E-PM | Shank Standard | DIN 1835 B |
| Coating | ALCRONA | Body Material | HSS-E-PM Material |
| Flute Count (NOF) | 3 | Decimal Equivalent | 0.0787″ |
| Flute Helix Angle (FHA) | 40 Degrees | Series/List # | C367 |
| Shank Type | Weldon |
Product Features
| Family Description | E-code # C3672.0 | Country of Origin | Poland |
Shipping Info
Package Weight
0.42
