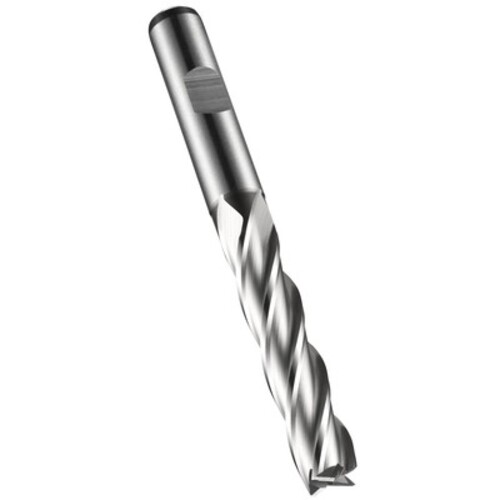

22.00 MM Dormer HSS-E-PM Bright DIN 1835 B Shank End Mill N DIN 844 L E-code # C27322.0
SQ End Mill; 22 mm Dia. × 75 mm LOC × 20 mm Shank Dia. × 141 mm OAL ; 5 FL ; HSSCo-PM ; Uncoated ; Series C247
Additional Tariff Surcharge of 8 %
| Cutting Diameter (DC) | 22 mm | Applicable Material | | Steel | Cast Iron | Super-Alloys / Titanium | Aluminum / Non-Ferrous Materials | |
| Connection Diameter Machine Side (DCONMS) | 20 mm | Application | Shank Cutter Finishing |
| Depth of Cut Maximum (APMX) | 75 mm | Head Length (LH) | 75 mm |
| Overall Length (OAL) | 141 mm | Neck Length (LN) | 90.5 mm |
| Cutting Edge Material | HSSCo-PM | Length Group | Long |
| Coating | Uncoated | Shank Standard | DIN 1835 B |
| Flute Count (NOF) | 5 | Body Material | HSS-E-PM Material |
| Flute Helix Angle (FHA) | 30 Degrees | Decimal Equivalent | 0.8661″ |
| Shank Type | Weldon | Series/List # | C247 |
| Usable Length (LU) | 90.5 mm |
Product Features
| Family Description | E-code # C27322.0 | Country of Origin | Czech Rep. |
Shipping Info
Package Weight
10.885
