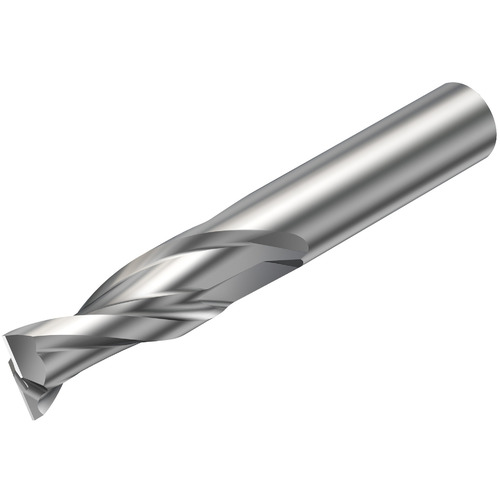

2P232-0400-NA H10F COROMILL PLURA
Corner Radius End Mill; 4 mm Dia. × 7 mm LOC × 4 mm Shank Dia. × 50 mm OAL ; 2 FL ; Carbide
Additional Tariff Surcharge of 8 %
| Cutting Diameter (DC) | 4 mm | End Shape | Corner Radius |
| Connection Diameter Machine Side (DCONMS) | 4 mm | Applicable Material | | Aluminum / Non-Ferrous Materials | |
| Depth of Cut Maximum (APMX) | 7 mm | Corner Radius (RE) | 0.15 mm |
| Overall Length (OAL) | 50 mm | Tool Type | Center Cut |
| Cutting Edge Material | Carbide | Length Group | 1.8D |
| Coating | Uncoated | Coolant Supply Property (CSP) | External |
| Flute Count (NOF) | 2 | Decimal Equivalent | 0.1575″ |
| Flute Helix Angle (FHA) | CW|30 Degrees | Series/List # | 2P232-NA |
| Shank Type | Round |
Product Features
| Country of Origin | Italy |
Shipping Info
Package Weight
.040
