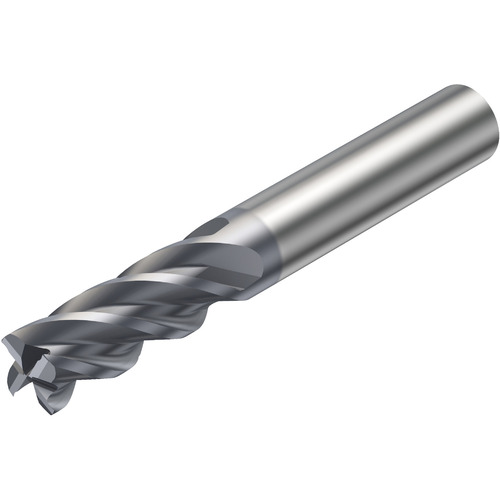

2P340-0500-PA 1630 COROMILL PLURA
Square End Mill; 5 mm Dia. × 13 mm LOC × 6 mm Shank Dia. × 57 mm OAL ; 4 FL ; Carbide ; AlCrN
Additional Tariff Surcharge of 8 %
| Cutting Diameter (DC) | 5 mm | Shank Type | Round |
| Connection Diameter Machine Side (DCONMS) | 6 mm | End Shape | Square |
| Depth of Cut Maximum (APMX) | 13 mm | Applicable Material | | Steel | Cast Iron | |
| Overall Length (OAL) | 57 mm | Corner Chamfer Width (CHW) | 0.13 mm |
| Cutting Edge Material | Carbide | Tool Type | Center Cut |
| Coating | AlCrN | Length Group | 2.6D |
| Flute Count (NOF) | 4 | Coolant Supply Property (CSP) | External |
| Flute Helix Angle (FHA) | CW|37 Degrees | Decimal Equivalent | 0.1969″ |
Product Features
| Country of Origin | Italy |
Shipping Info
Package Weight
.065
