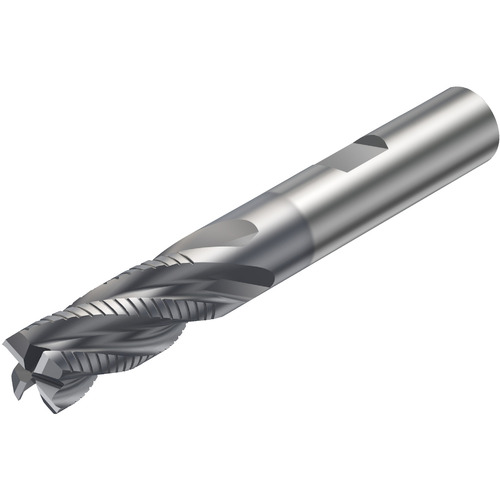

R216.35-25030-BC45B 1620 COROMILL PLURA
Square End Mill; 25 mm Dia. × 45 mm LOC × 25 mm Shank Dia. × 121 mm OAL ; 5 FL ; Carbide ; AlTiN
Additional Tariff Surcharge of 8 %
| Cutting Diameter (DC) | 25 mm | Shank Type | Weldon |
| Connection Diameter Machine Side (DCONMS) | 25 mm | End Shape | Square |
| Depth of Cut Maximum (APMX) | 45 mm | Applicable Material | | Stainless Steel | Super-Alloys / Titanium | |
| Overall Length (OAL) | 121 mm | Corner Chamfer Width (CHW) | 0.15 mm |
| Cutting Edge Material | Carbide | Tool Type | Center Cut |
| Coating | AlTiN | Length Group | 1.8D |
| Flute Count (NOF) | 5 | Coolant Supply Property (CSP) | External |
| Flute Helix Angle (FHA) | CW|30 Degrees | Decimal Equivalent | 0.9843″ |
Product Features
| Country of Origin | Germany |
Shipping Info
Package Weight
1.620
