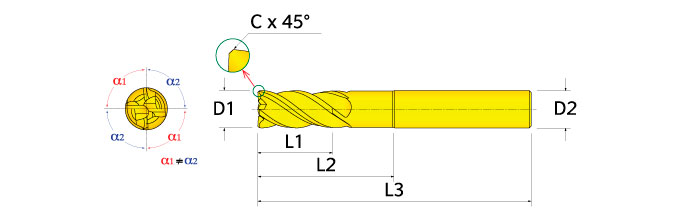

47C00122U0RQ500 IN2005 IN1005
SQ End Mill; 0.039″ Dia. × 0.087″ LOC × 0.157″ Shank Dia. × 1.968″ OAL ; 4 FL ; TiCN
| Cutting Diameter (DC) | 0.039″ | Application | Facing | Helical Interpolation | Rampdown | Shouldering | Slotting |
| Connection Diameter Machine Side (DCONMS) | 0.157″ | Ramping Angle Maximum (RMPX) | 5 Degrees |
| Depth of Cut Maximum (APMX) | 0.087″ | Grade | IN1005 |
| Overall Length (OAL) | 1.968″ | Neck Diameter (DN) | 0.037″ |
| Cutting Edge Material | Carbide | Body Half Taper Angle (BHTA) | 15 Degrees |
| Coating | TiCN | Tool Type | Center Cut |
| Flute Count (NOF) | 4 | Body Material | Steel |
| Flute Helix Angle (FHA) | 38 Degrees | Decimal Equivalent | 0.039″ |
| End Shape | Square | Measurement Type | Inch |
| Applicable Material | | Steel | Stainless Steel | Cast Iron | Hard Materials | Non Ferrous Metals | Hi Temp Alloys | | Tool Cutting Edge Angle (KAPR) | 90 Degrees |
Product Features
| Family Description | Corners: sharp and chamfer Grade: IN2005 | Country of Origin | USA |
Shipping Info
Package Weight
0
