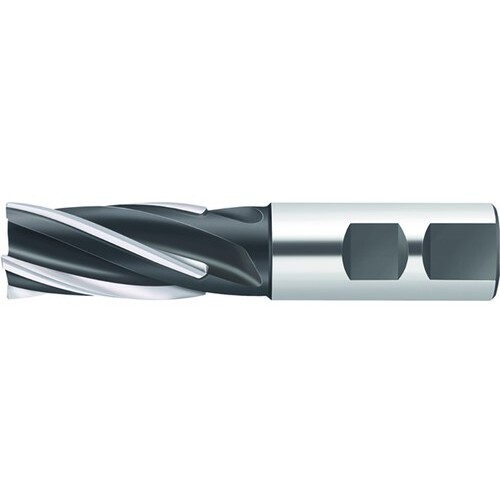

F1678.W.040.Z06.63.K Brazed helical shoulder Milling Cutter
SQ End Mill; 40 mm Dia. × 63 mm LOC × 40 mm Shank Dia. × 145 mm OAL ; 6 FL ; 84 mm LBS ; Carbide ; Uncoated ; Series F1678
Additional Tariff Surcharge of 8 %
| Cutting Diameter (DC) | 40 mm | Usable Length (LU) | 84 mm |
| Connection Diameter Machine Side (DCONMS) | 40 mm | Applicable Material | | Cast Iron | |
| Depth of Cut Maximum (APMX) | 63 mm | Application | Shoulder Milling |
| Overall Length (OAL) | 145 mm | Grade | WKM |
| Cutting Edge Material | Carbide | Tool Type | Non-Center Cutting |
| Coating | Uncoated | Length Group | Short|Stub |
| Flute Count (NOF) | 6 | Coolant Supply Property (CSP) | External |
| Flute Helix Angle (FHA) | 25 Degrees|CW | Decimal Equivalent | 1.5748″ |
| Shank Type | Weldon | Series/List # | F1678 |
Product Features
| Country of Origin | Germany |
Shipping Info
Package Weight
2.283
