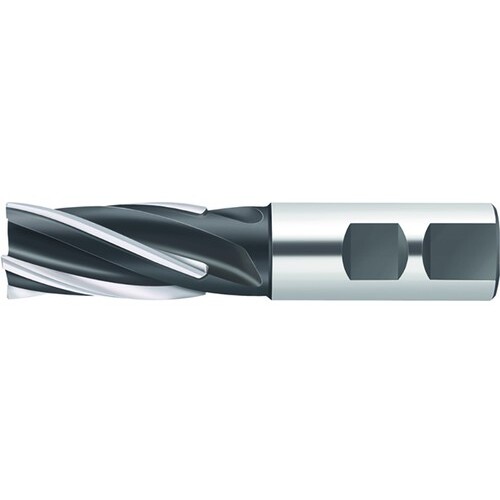

F1678.W.032.Z04.50.K Brazed helical shoulder Milling Cutter
SQ End Mill; 32 mm Dia. × 50 mm LOC × 32 mm Shank Dia. × 130 mm OAL ; 4 FL ; 69 mm LBS ; Carbide ; Uncoated ; Series F1678
Additional Tariff Surcharge of 8 %
| Cutting Diameter (DC) | 32 mm | Usable Length (LU) | 69 mm |
| Connection Diameter Machine Side (DCONMS) | 32 mm | Applicable Material | | Cast Iron | |
| Depth of Cut Maximum (APMX) | 50 mm | Application | Shoulder Milling |
| Overall Length (OAL) | 130 mm | Grade | WKM |
| Cutting Edge Material | Carbide | Tool Type | Non-Center Cutting |
| Coating | Uncoated | Length Group | Short|Stub |
| Flute Count (NOF) | 4 | Coolant Supply Property (CSP) | External |
| Flute Helix Angle (FHA) | 24 Degrees|CW | Decimal Equivalent | 1.2598″ |
| Shank Type | Weldon | Series/List # | F1678 |
Product Features
| Country of Origin | Germany |
Shipping Info
Package Weight
1.566
