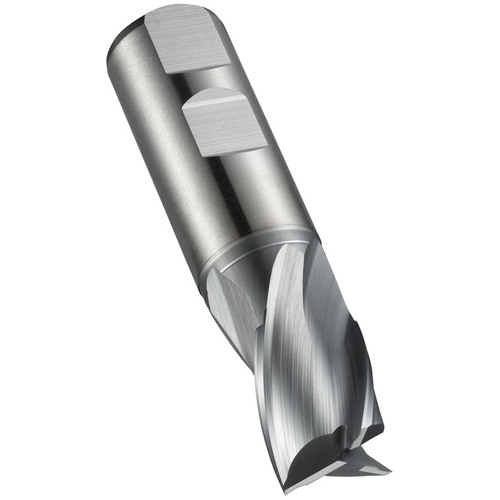

28.00 MM Dormer HSS-E-PM ALCRONA DIN 1835 B Shank Slot Drill N DIN 327 E-code # C35328.0
SQ End Mill; 28 mm Dia. × 45.5 mm LOC × 25 mm Shank Dia. × 102 mm OAL ; 3 FL ; HSSCo-PM ; AlCrN ; Series S260
Additional Tariff Surcharge of 8 %
| Cutting Diameter (DC) | 28 mm | Applicable Material | | Steel | Cast Iron | Hard Materials | Super-Alloys / Titanium | Aluminum / Non-Ferrous Materials | |
| Connection Diameter Machine Side (DCONMS) | 25 mm | Application | Shank Cutter Slotting |
| Depth of Cut Maximum (APMX) | 45.5 mm | Head Length (LH) | 26 mm |
| Overall Length (OAL) | 102 mm | Neck Length (LN) | 45.5 mm |
| Cutting Edge Material | HSSCo-PM | Length Group | Extra Short |
| Coating | AlCrN | Shank Standard | DIN 1835 B | DIN 327 D |
| Flute Count (NOF) | 3 | Body Material | HSS-E-PM Material |
| Flute Helix Angle (FHA) | 30 Degrees | Decimal Equivalent | 1.1024″ |
| Shank Type | Weldon | Series/List # | S260 |
Product Features
| Family Description | E-code # C35328.0 | Country of Origin | Czech Rep. |
Shipping Info
Package Weight
12.898
