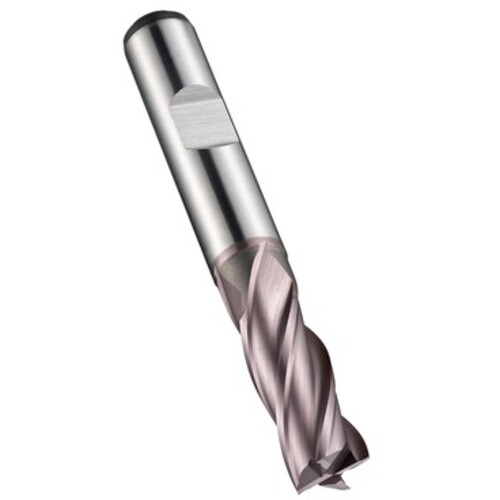

7.00 MM Dormer HSS-E-PM TiCN DIN 1835 B Shank End Mill N DIN 844 K E-code # C2467.0
SQ End Mill; 7 mm Dia. × 16 mm LOC × 10 mm Shank Dia. × 66 mm OAL ; 4 FL ; HSSCo-PM ; TiCN ; Series S521
Additional Tariff Surcharge of 8 %
| Cutting Diameter (DC) | 7 mm | Applicable Material | | Steel | Cast Iron | Hard Materials | Super-Alloys / Titanium | Aluminum / Non-Ferrous Materials | |
| Connection Diameter Machine Side (DCONMS) | 10 mm | Application | Shank Cutter Finishing |
| Depth of Cut Maximum (APMX) | 16 mm | Head Length (LH) | 16 mm |
| Overall Length (OAL) | 66 mm | Length Group | Short|Stub |
| Cutting Edge Material | HSSCo-PM | Shank Standard | DIN 1835 B |
| Coating | TiCN | Body Material | HSS-E-PM Material |
| Flute Count (NOF) | 4 | Decimal Equivalent | 0.2756″ |
| Flute Helix Angle (FHA) | 30 Degrees | Series/List # | S521 |
| Shank Type | Weldon |
Product Features
| Family Description | E-code # C2467.0 | Country of Origin | Czech Rep. |
Shipping Info
Package Weight
1.292
