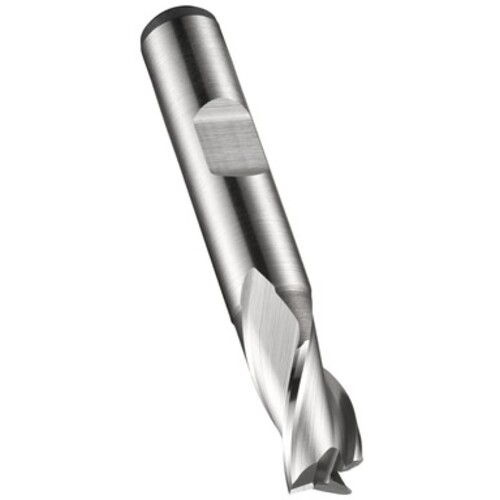

8.00 MM Dormer HSS-E-PM Bright DIN 1835 B Shank Slot Drill N DIN 327 E-code # C3068.0
SQ End Mill; 8 mm Dia. × 11 mm LOC × 10 mm Shank Dia. × 61 mm OAL ; 3 FL ; HSS-E-PM ; Bright ; Series C306
Additional Tariff Surcharge of 8 %
| Cutting Diameter (DC) | 8 mm | Applicable Material | | Steel | Cast Iron | Super-Alloys / Titanium | Aluminum / Non-Ferrous Materials | |
| Connection Diameter Machine Side (DCONMS) | 10 mm | Application | Shank Cutter Slotting |
| Depth of Cut Maximum (APMX) | 11 mm | Head Length (LH) | 11 mm |
| Overall Length (OAL) | 61 mm | Length Group | Extra Short |
| Cutting Edge Material | HSS-E-PM | Shank Standard | DIN 1835 B |
| Coating | Bright | Body Material | HSS-E-PM Material |
| Flute Count (NOF) | 3 | Decimal Equivalent | 0.315″ |
| Flute Helix Angle (FHA) | 30 Degrees | Series/List # | C306 |
| Shank Type | Weldon |
Product Features
| Family Description | E-code # C3068.0 | Country of Origin | Poland |
Shipping Info
Package Weight
1.299
