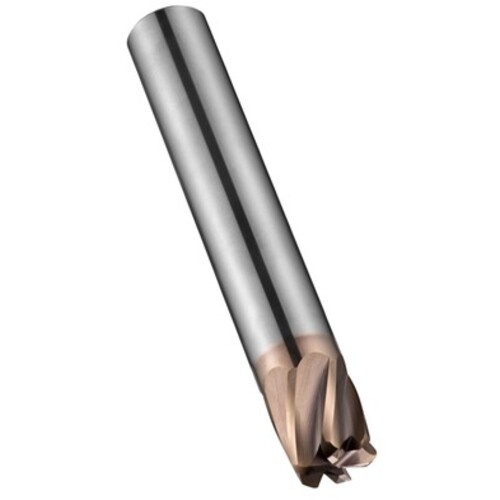

10.00 MM 2.0 MM Dormer HM TiSiN DIN 6535 HA Shank High Feed End Mill N DORMER E-code # S53610.0XR2.0
SQ End Mill; 10 mm Dia. × 10 mm LOC × 10 mm Shank Dia. × 75 mm OAL ; 2 mm RE ; 6 FL ; Carbide ; TiSiN ; Series S536
Additional Tariff Surcharge of 8 %
| Cutting Diameter (DC) | 10 mm | Applicable Material | | Hard Materials | |
| Connection Diameter Machine Side (DCONMS) | 10 mm | Application | Shank Cutter High Feed |
| Depth of Cut Maximum (APMX) | 10 mm | Corner Radius (RE) | 2 mm |
| Overall Length (OAL) | 75 mm | Head Length (LH) | 10 mm |
| Cutting Edge Material | Carbide | Length Group | Extra Short |
| Coating | TiSiN | Shank Standard | DIN 6535 HA |
| Flute Count (NOF) | 6 | Body Material | HM Material |
| Flute Helix Angle (FHA) | 25 Degrees | Decimal Equivalent | 0.3937″ |
| Shank Type | Round | Series/List # | S536 |
| End Shape | Corner Radius | Corner Radius (RE) / Chamfer Width (CHW) | 2 mm |
Product Features
| Family Description | E-code # S53610.0XR2.0 | Country of Origin | Malaysia |
Shipping Info
Package Weight
2.975
