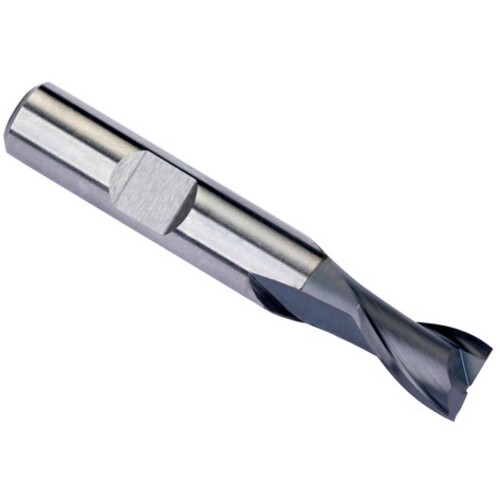

6.50 MM Dormer HSS-E-PM TiCN DIN 1835 B Shank Slot Drill N DIN 327 E-code # C1266.5
SQ End Mill; 6.5 mm Dia. × 10 mm LOC × 10 mm Shank Dia. × 60 mm OAL ; 2 FL ; HSS-E-PM ; TiCN ; Series C126
Additional Tariff Surcharge of 8 %
| Cutting Diameter (DC) | 6.5 mm | Shank Type | Weldon |
| Connection Diameter Machine Side (DCONMS) | 10 mm | Applicable Material | | Steel | Cast Iron | Hard Materials | Super-Alloys / Titanium | Aluminum / Non-Ferrous Materials | |
| Depth of Cut Maximum (APMX) | 10 mm | Application | Shank Cutter Slotting |
| Overall Length (OAL) | 60 mm | Head Length (LH) | 10 mm |
| Cutting Edge Material | HSS-E-PM | Length Group | Extra Short |
| Coating | TiCN | Shank Standard | DIN 1835 B |
| Flute Count (NOF) | 2 | Body Material | HSS-E-PM Material |
| Flute Helix Angle (FHA) | 30 Degrees | Series/List # | C126 |
Product Features
| Family Description | E-code # C1266.5 | Country of Origin | Czech Rep. |
Shipping Info
Package Weight
1.225
