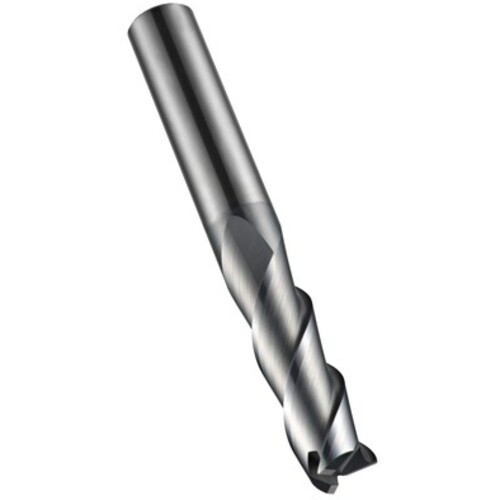

10.00 MM Dormer HM AlCrN DIN 6535 HA Shank End Mill N DORMER E-code # S71410.0
SQ End Mill; 10 mm Dia. × 31 mm LOC × 10 mm Shank Dia. × 75 mm OAL ; 3 FL ; Carbide ; AlCrN ; Series S714
Additional Tariff Surcharge of 8 %
| Cutting Diameter (DC) | 10 mm | Applicable Material | | Steel | Cast Iron | Aluminum / Non-Ferrous Materials | |
| Connection Diameter Machine Side (DCONMS) | 10 mm | Application | Shank Cutter Slotting |
| Depth of Cut Maximum (APMX) | 31 mm | Head Length (LH) | 31 mm |
| Overall Length (OAL) | 75 mm | Length Group | Long |
| Cutting Edge Material | Carbide | Shank Standard | DIN 6535 HA |
| Coating | AlCrN | Body Material | HM Material |
| Flute Count (NOF) | 3 | Decimal Equivalent | 0.3937″ |
| Flute Helix Angle (FHA) | 40 Degrees | Series/List # | S714 |
| Shank Type | Round |
Product Features
| Family Description | E-code # S71410.0 | Country of Origin | Malaysia |
Shipping Info
Package Weight
2.73
