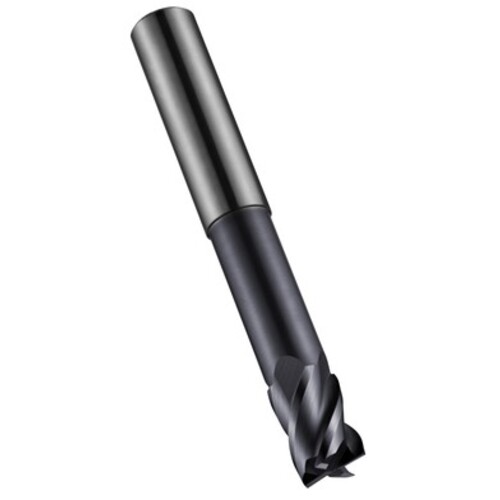

14.00 MM Dormer HM AlTiN DIN 6535 HA Shank End Mill N DORMER E-code # S21914.0
SQ End Mill; 14 mm Dia. × 85 mm LOC × 14 mm Shank Dia. × 125 mm OAL ; 4 FL ; Carbide ; AlTiN ; Series S521
Additional Tariff Surcharge of 8 %
| Cutting Diameter (DC) | 14 mm | Applicable Material | | Hard Materials | Super-Alloys / Titanium | |
| Connection Diameter Machine Side (DCONMS) | 14 mm | Application | Shank Cutter Finishing |
| Depth of Cut Maximum (APMX) | 85 mm | Head Length (LH) | 22 mm |
| Overall Length (OAL) | 125 mm | Neck Length (LN) | 85 mm |
| Cutting Edge Material | Carbide | Length Group | Extra Short |
| Coating | AlTiN | Shank Standard | DIN 6535 HA |
| Flute Count (NOF) | 4 | Body Material | HM Material |
| Flute Helix Angle (FHA) | 40 Degrees | Decimal Equivalent | 0.5512″ |
| Shank Type | Round | Series/List # | S521 |
Product Features
| Family Description | E-code # S21914.0 | Country of Origin | Malaysia |
Shipping Info
Package Weight
8.575
