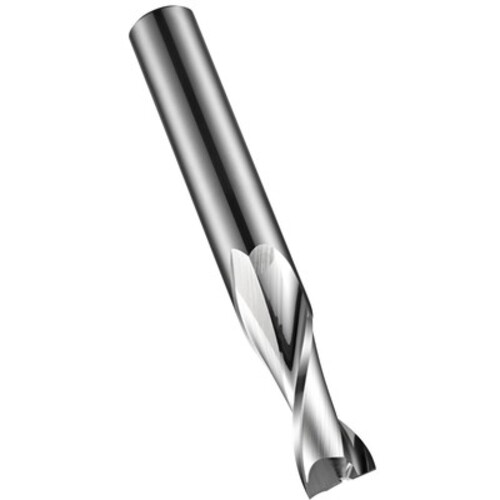

3.00 MM 3.0 MM Dormer HM Polished DIN 6535 HA Shank End Mill W DORMER E-code # S6103.0XD3
SQ End Mill; 3 mm Dia. × 9 mm LOC × 3 mm Shank Dia. × 40 mm OAL ; 2 FL ; Carbide ; Polished ; Series S610
Additional Tariff Surcharge of 8 %
| Cutting Diameter (DC) | 3 mm | Applicable Material | | Aluminum / Non-Ferrous Materials | |
| Connection Diameter Machine Side (DCONMS) | 3 mm | Application | Shank Cutter Slotting |
| Depth of Cut Maximum (APMX) | 9 mm | Head Length (LH) | 9 mm |
| Overall Length (OAL) | 40 mm | Length Group | Short|Stub |
| Cutting Edge Material | Carbide | Shank Standard | DIN 6535 HA |
| Coating | Polished | Body Material | HM Material |
| Flute Count (NOF) | 2 | Decimal Equivalent | 0.1181″ |
| Flute Helix Angle (FHA) | 30 Degrees | Series/List # | S610 |
| Shank Type | Round | Corner Radius (RE) / Chamfer Width (CHW) | 0.1 mm |
Product Features
| Family Description | E-code # S6103.0XD3 | Country of Origin | Malaysia |
Shipping Info
Package Weight
0.175
