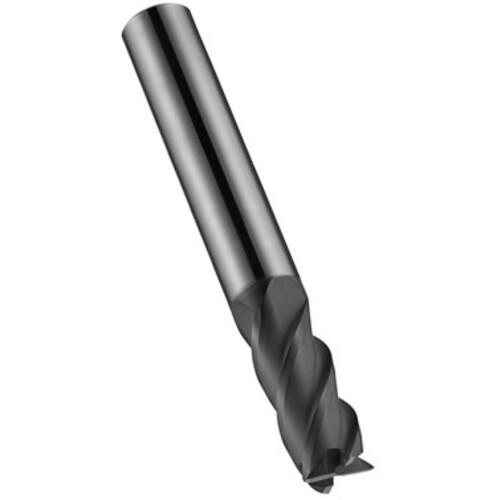

5.00 MM Dormer HM Diamond DIN 6535 HA Shank End Mill N DORMER E-code # S6125.0
SQ End Mill; 5 mm Dia. × 15 mm LOC × 5 mm Shank Dia. × 50 mm OAL ; 4 FL ; Carbide ; Diamond ; Series S612
Additional Tariff Surcharge of 8 %
| Cutting Diameter (DC) | 5 mm | Shank Type | Round |
| Connection Diameter Machine Side (DCONMS) | 5 mm | Application | Shank Cutter Slotting |
| Depth of Cut Maximum (APMX) | 15 mm | Head Length (LH) | 15 mm |
| Overall Length (OAL) | 50 mm | Length Group | Short|Stub |
| Cutting Edge Material | Carbide | Shank Standard | DIN 6535 HA |
| Coating | Diamond | Body Material | HM Material |
| Flute Count (NOF) | 4 | Decimal Equivalent | 0.1969″ |
| Flute Helix Angle (FHA) | 40 Degrees | Series/List # | S612 |
Product Features
| Family Description | E-code # S6125.0 | Country of Origin | Malaysia |
Shipping Info
Package Weight
0.7
