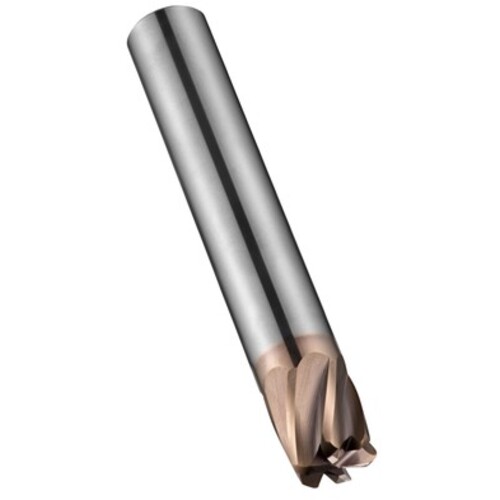

6.00 MM 1.0 MM Dormer HM TiSiN DIN 6535 HA Shank High Feed End Mill N DORMER E-code # S5366.0XR1.0
SQ End Mill; 6 mm Dia. × 6 mm LOC × 6 mm Shank Dia. × 60 mm OAL ; 1 mm RE ; 4 FL ; Carbide ; TiSiN ; Series S536
Additional Tariff Surcharge of 8 %
| Cutting Diameter (DC) | 6 mm | Applicable Material | | Hard Materials | |
| Connection Diameter Machine Side (DCONMS) | 6 mm | Application | Shank Cutter High Feed |
| Depth of Cut Maximum (APMX) | 6 mm | Corner Radius (RE) | 1 mm |
| Overall Length (OAL) | 60 mm | Head Length (LH) | 6 mm |
| Cutting Edge Material | Carbide | Length Group | Extra Short |
| Coating | TiSiN | Shank Standard | DIN 6535 HA |
| Flute Count (NOF) | 4 | Body Material | HM Material |
| Flute Helix Angle (FHA) | 25 Degrees | Decimal Equivalent | 0.2362″ |
| Shank Type | Round | Series/List # | S536 |
| End Shape | Corner Radius | Corner Radius (RE) / Chamfer Width (CHW) | 1 mm |
Product Features
| Family Description | E-code # S5366.0XR1.0 | Country of Origin | Malaysia |
Shipping Info
Package Weight
1.015
