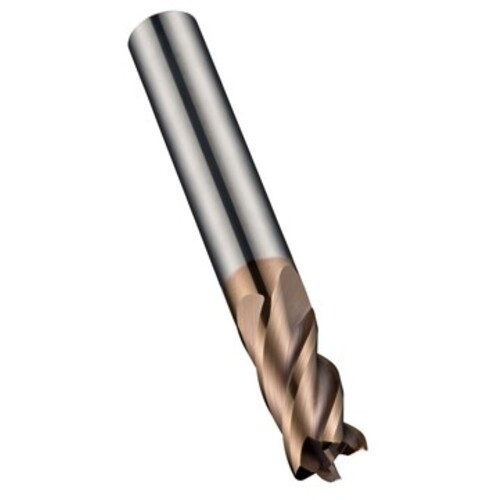

6.00 MM 0.5 MM Dormer HM TiSiN DIN 6535 HA Shank Corner Radius End Mill N DORMER E-code # S7676.0XR0.5
SQ End Mill; 6 mm Dia. × 13 mm LOC × 6 mm Shank Dia. × 57 mm OAL ; 0.5 mm RE ; 4 FL ; Carbide ; TiSiN ; Series S933
Additional Tariff Surcharge of 8 %
| Cutting Diameter (DC) | 6 mm | Applicable Material | | Steel | Cast Iron | |
| Connection Diameter Machine Side (DCONMS) | 6 mm | Application | Shank Cutter Corner Radius |
| Depth of Cut Maximum (APMX) | 13 mm | Corner Radius (RE) | 0.5 mm |
| Overall Length (OAL) | 57 mm | Head Length (LH) | 13 mm |
| Cutting Edge Material | Carbide | Length Group | Short|Stub |
| Coating | TiSiN | Shank Standard | DIN 6535 HA |
| Flute Count (NOF) | 4 | Body Material | HM Material |
| Flute Helix Angle (FHA) | Variable | Decimal Equivalent | 0.2362″ |
| Shank Type | Round | Series/List # | S933 |
| End Shape | Corner Radius |
Product Features
| Family Description | E-code # S7676.0XR0.5 | Country of Origin | Malaysia |
Shipping Info
Package Weight
0.952
