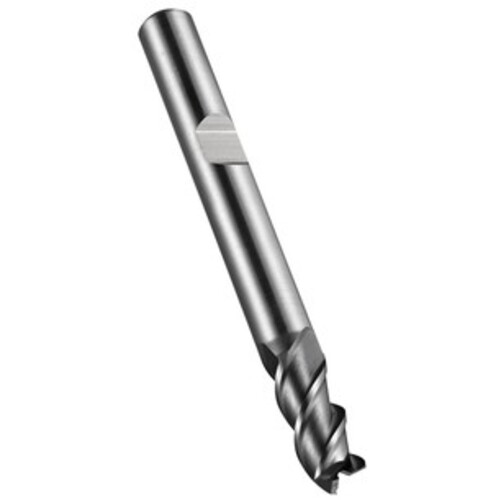

18.00 MM Dormer HSS-E-PM ALCRONA DIN 1835 B Shank End Mill N DIN 844 K E-code # C90718.0
SQ End Mill; 18 mm Dia. × 43.5 mm LOC × 16 mm Shank Dia. × 92 mm OAL ; 4 FL ; HSSCo-PM ; AlCrN ; Series S763
Additional Tariff Surcharge of 8 %
| Cutting Diameter (DC) | 18 mm | Applicable Material | | Cast Iron | Hard Materials | Super-Alloys / Titanium | |
| Connection Diameter Machine Side (DCONMS) | 16 mm | Application | Shank Cutter Finishing |
| Depth of Cut Maximum (APMX) | 43.5 mm | Head Length (LH) | 32 mm |
| Overall Length (OAL) | 92 mm | Neck Length (LN) | 43.5 mm |
| Cutting Edge Material | HSSCo-PM | Length Group | Short|Stub |
| Coating | AlCrN | Shank Standard | DIN 1835 B |
| Flute Count (NOF) | 4 | Body Material | HSS-E-PM Material |
| Flute Helix Angle (FHA) | 45 Degrees | Decimal Equivalent | 0.7087″ |
| Shank Type | Weldon | Series/List # | S763 |
Product Features
| Family Description | E-code # C90718.0 | Country of Origin | Poland |
Shipping Info
Package Weight
4.83
