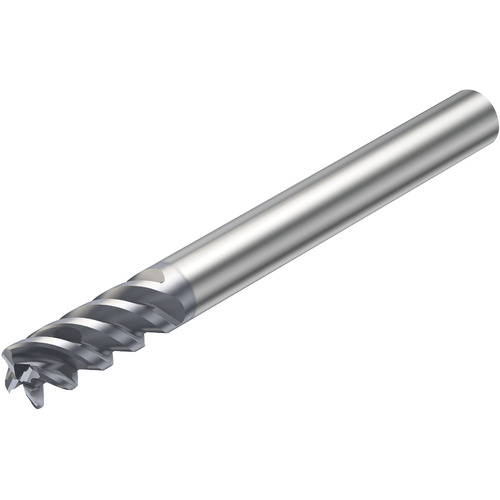

R216.23-04050CAK11H 1620 COROMILL PLURA
Corner Radius End Mill; 4 mm Dia. × 11 mm LOC × 6 mm Shank Dia. × 57 mm OAL ; 3 FL ; Carbide ; AlTiN
Additional Tariff Surcharge of 8 %
| Cutting Diameter (DC) | 4 mm | Shank Type | Round |
| Connection Diameter Machine Side (DCONMS) | 6 mm | End Shape | Corner Radius |
| Depth of Cut Maximum (APMX) | 11 mm | Applicable Material | | Steel | Hard Materials | |
| Overall Length (OAL) | 57 mm | Corner Radius (RE) | 1 mm |
| Cutting Edge Material | Carbide | Tool Type | Center Cut |
| Coating | AlTiN | Length Group | 2.8D |
| Flute Count (NOF) | 3 | Coolant Supply Property (CSP) | External |
| Flute Helix Angle (FHA) | CW|50 Degrees | Decimal Equivalent | 0.1575″ |
Product Features
| Country of Origin | Germany |
Shipping Info
Package Weight
.064
