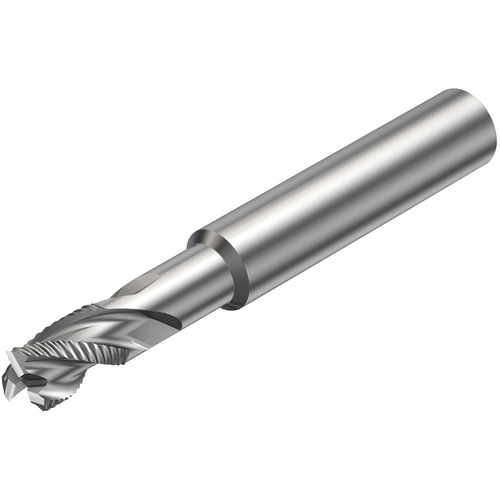

R216.33-06040-AJ10U H10F COROMILL PLURA
Square End Mill; 6 mm Dia. × 24 mm LOC × 8 mm Shank Dia. × 63 mm OAL ; 3 FL ; Carbide
Additional Tariff Surcharge of 8 %
| Cutting Diameter (DC) | 6 mm | End Shape | Square |
| Connection Diameter Machine Side (DCONMS) | 8 mm | Applicable Material | | Aluminum / Non-Ferrous Materials | |
| Depth of Cut Maximum (APMX) | 24 mm | Corner Chamfer Width (CHW) | 0.45 mm |
| Overall Length (OAL) | 63 mm | Tool Type | Center Cut |
| Cutting Edge Material | Carbide | Length Group | 4D |
| Coating | Uncoated | Coolant Supply Property (CSP) | External |
| Flute Count (NOF) | 3 | Decimal Equivalent | 0.2362″ |
| Flute Helix Angle (FHA) | CW|40 Degrees | Series/List # | R216.3x..40-AJ..U |
| Shank Type | Round |
Product Features
| Country of Origin | Germany |
Shipping Info
Package Weight
.101
