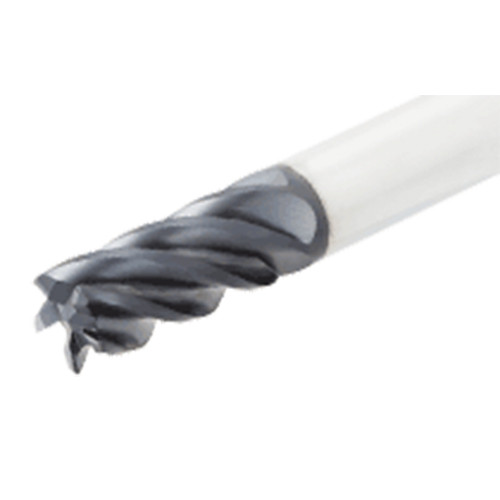

ECI-H5R 625-1.56W031CF 90 IC900
SQ End Mill; 5/8″ Dia. × 1.56″ LOC × 5/8″ Shank Dia. × 4″ OAL ; 0.031″ RE ; 5 FL ; 1.56″ LBS ; Carbide ; AlTiN

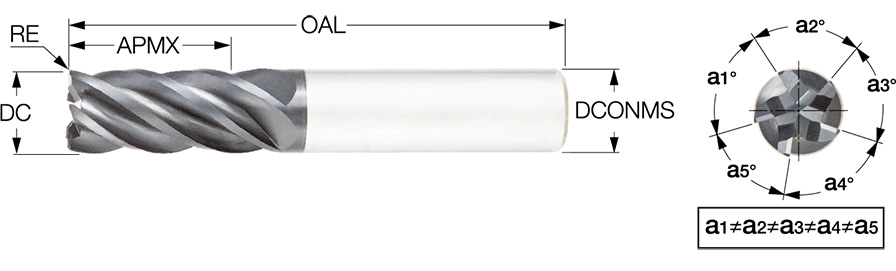

| Cutting Diameter (DC) | 5/8″ | Corner Radius (RE) | 0.031″ |
| Connection Diameter Machine Side (DCONMS) | 5/8″ | Ramping Angle Maximum (RMPX) | 5 Degrees |
| Depth of Cut Maximum (APMX) | 1.56″ | Grade | IC900 |
| Overall Length (OAL) | 4″ | Tool Type | Solid carbide non center cutting endmills 90° |
| Cutting Edge Material | Carbide | Maximum Feed per Tooth (fz(max)) | 0.0055 ″/tooth |
| Coating | AlTiN | Minimum Feed per Tooth (fz(min)) | 0.0025 ″/tooth |
| Flute Count (NOF) | 5 | Coolant Supply Property (CSP) | External |
| Flute Helix Angle (FHA) | 37 Degrees | Body Material | Carbide |
| Shank Type | Weldon | Decimal Equivalent | 0.625″ |
| End Shape | Corner Radius | Measurement Type | Inch |
| Usable Length (LU) | 1.56″ | Connection Code Machine Side (CCMS) | Weldon |
| Applicable Material | | Steel | Stainless Steel | Cast Iron | Hard Materials | Super-Alloys / Titanium | | Cutting Diameter Tolerance | e8 |
| Application | | Helical Interpolation | Rampdown | Shouldering | Slotting | | Shank Diameter Tolerance (TCDMM) | h6 |
Product Features
| Family Description | 5 flute endmills with different helix (36°-38°) and variable pitch for chatter damping with assorted radii. Used for very high material removal rates roughing and finishing operations. | Country of Origin | Israel |
Shipping Info
Package Weight
0.541
